Subsurface aeration

Air Pro Lake Bed Aerator

Powerful underwater aeration for large bodies of water.
Lake Bed Aerator Inquiry
air pro
The Air Pro Lake Bed Aerator is perfect for large deep ponds, dams or lakes.

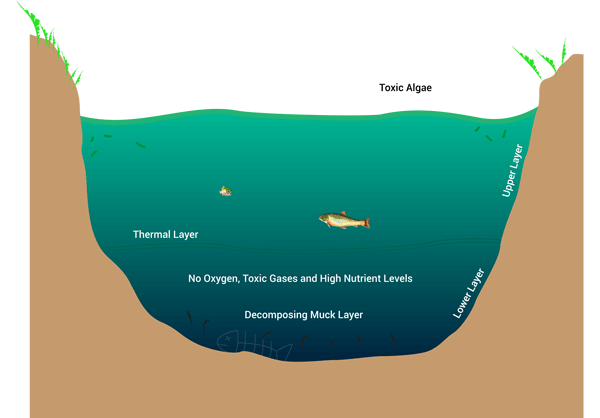

Pond before aeration
before aeration diagram
Ponds with no aeration would have toxic algae, no oxygen, noxious gases, limited fish habitat and high nutrient levels.

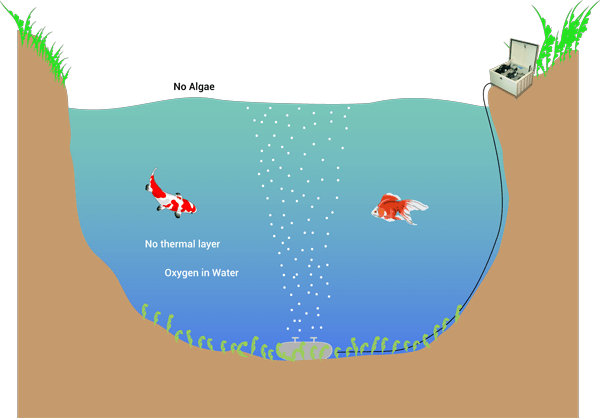

Pond after aeration
after aeration diagram
Pond with aeration has oxygen present throughout the entire water body with no thermal layers, no noxious gases, low nutrient levels and no toxic algae, creating a healthy environment for fish and other aquatic life.

Air Pro Series Size Options

Lake Bed Aerator

Impressive underwater aeration. Perfect for deeper water bodies.
Suitable for:
dam icon
Working Dams
deep water icon
Deep Water
no display required icon
No Display Required
  • Commercial and deep water bodies
airpro unit

What comes in the kit

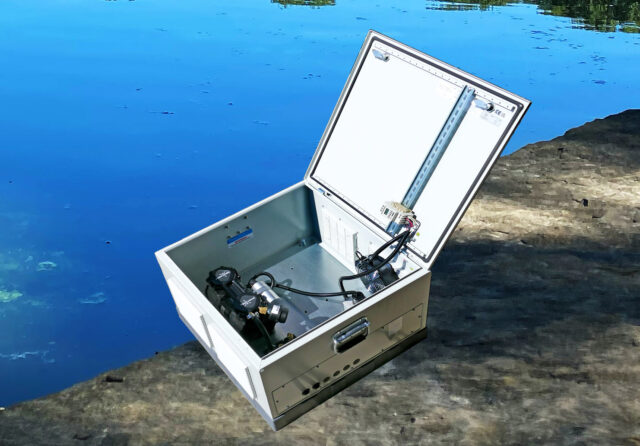

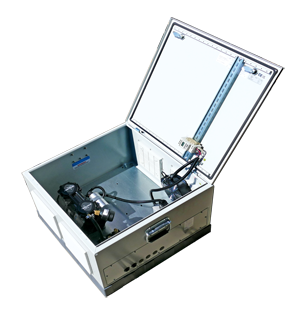

cabinet icon
Outdoor weather resistant cabinet
compressor icon
Compressor (your choice of single 1-3 pods or
double 4-6 pods)
diffuser pods icon
Diffuser Pods (choose from 1-6 pods)
air tubing icon
Self-Weighted Air Tubing
(38m, 50m, 100m, or 152m)
motor cord icon
Standard 240V power cable
Compressor 1 Pod 2 Pods 3 Pods 4 Pods 5 Pods 6 Pods
Single compressor aerates: 3000m2 6000m2 9000m2 n/a n/a n/a
Twin compressor aerates: 3000m2 6000m2 9000m2 12000m2 15000m2 18000m2
Compressor Single motor aerates Twin motor aerates
1 Pod 3000m2 3000m2
2 Pods 6000m2 6000m2
3 Pods 9000m2 9000m2
4 Pods n/a 12000m2
5 Pods n/a 15000m2
6 Pods n/a 18000m2


cabinet icon
  • Powder Coated Aluminium Outdoor Enclosure
  • 24 Hour Timer
  • High-output cooling fan included
  • 61cm x 61cm x 8cm Polypropylene Equipment Base eliminating the need for a footing at site

Diffuser Pods

diffuser pods icon
  • Diffuser membranes are self-cleaning
  • Self-weighted bases – no need to add gravel or weights
  • Check valves incorporated to prevent backflow
  • Diffusers release air centimetres from the pond bottom while still preventing disruption of settled organics
  • Diffuser membranes feature thousands of minute holes to optimise smaller air bubbles, entraining more water and creating greater volumes of water movement


compresser icon
  • Half HP Dual Piston Oil Free Compressors (available as single 1-3 pods or twin 4-6 pods)
  • Quiet operation - Rated at less than 65 decibels

Self Weighted Air Tubing

cabinet icon
  • Self-weighted air tubings stays at the bottom
  • 3/8” ID Tubing


increases oxygen icon
Increases oxygen in water
reduce algae icon
Greatly reduces the likelyhood of algal blooms
fish health icon
Promotes good fish health
clear water icon
Keeps water clearer
healthy water icon
Improves overall health of water body
